LG TR3BQ 4K Multi Touch CreateBoard Core (3 Sizes)

CreateBoard Core is tailored for schools and administrative offices using their own content management and operating systems. Designed specifically for organizations with unique IT, security, or safety requirements, CreateBoard Core offers the full interactive display experience without a preloaded OS. It allows seamless integration with an organization’s existing infrastructure, including LG’s own Chromebox or Windows OS OPS.

Features include:

Seamless Writing Experience
LG CreateBoard delivers a lifelike touch experience with support for 4K resolution, enabling users to write, draw, zoom, and rotate with precision using just their fingers. This makes it an exceptional tool for both creative projects and presentations, ensuring every detail is crisp and clear.

Multi-Touch
LG CreateBoard boasts a multi-touch functionality that can concurrently detect up to 40 touch points. This feature facilitates simultaneous touch and gesture inputs from multiple users, fostering easy collaboration and idea sharing among team members. This encourages interaction in group activities or meetings.

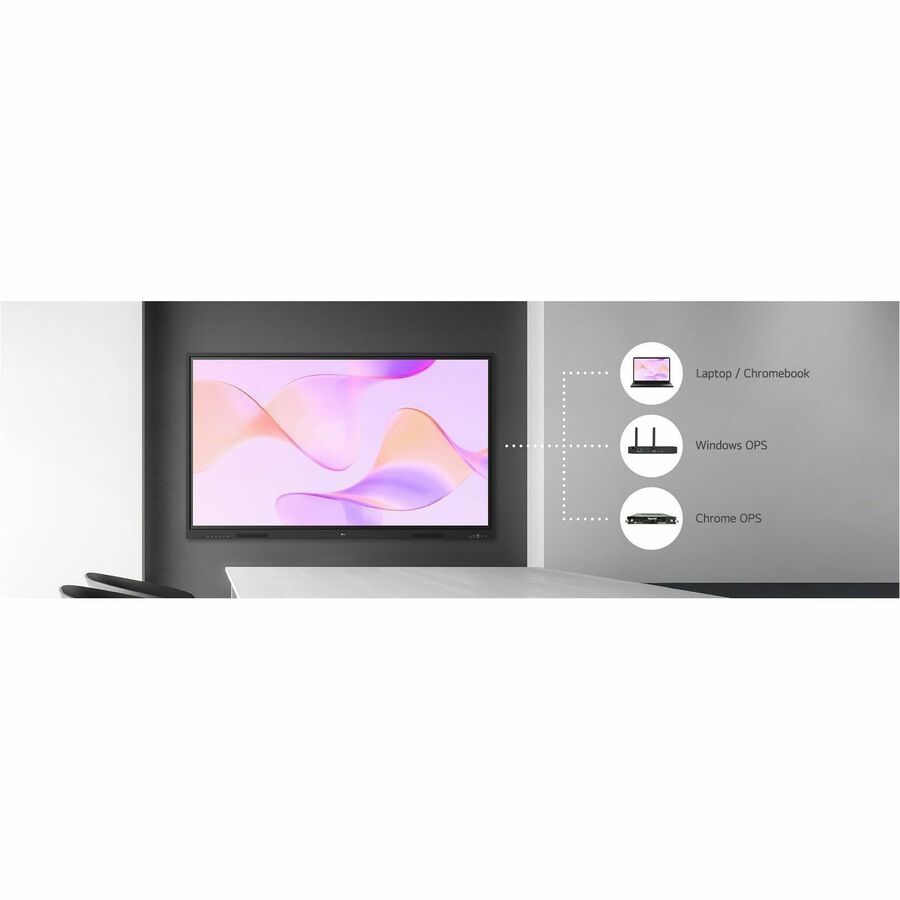

Choose Your Own Device for OS Flexibility
LG CreateBoard integrates smoothly with devices across various operating systems, including Windows, Android, and ChromeOS, allowing users to work within their preferred environments. This creates a flexible and highly adaptable workspace tailored to individual needs.

It also works with the Newline Signage Pro Media Player with FREE! Signage Pro License.

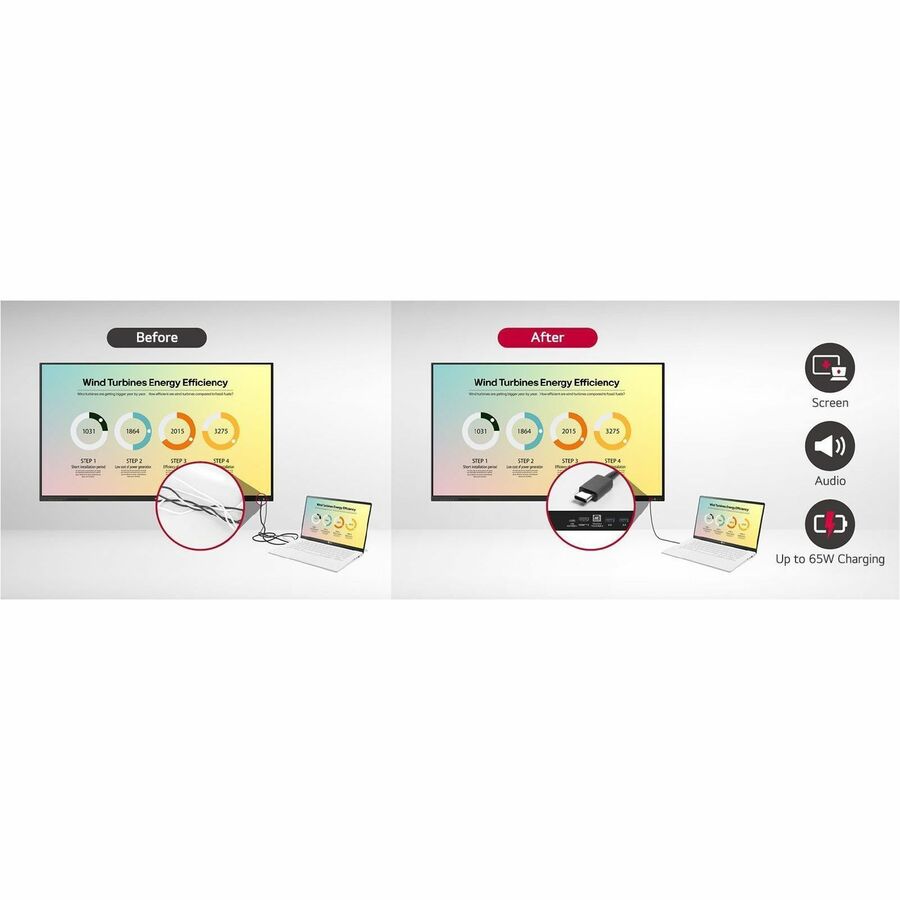

C-Type Connetion
USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

OTA Functionality
OTA (Over-The-Air) functionality built into the LG CreateBoard enables software updates to be performed wirelessly and automatically, allowing users to maintain the latest features and security patches.

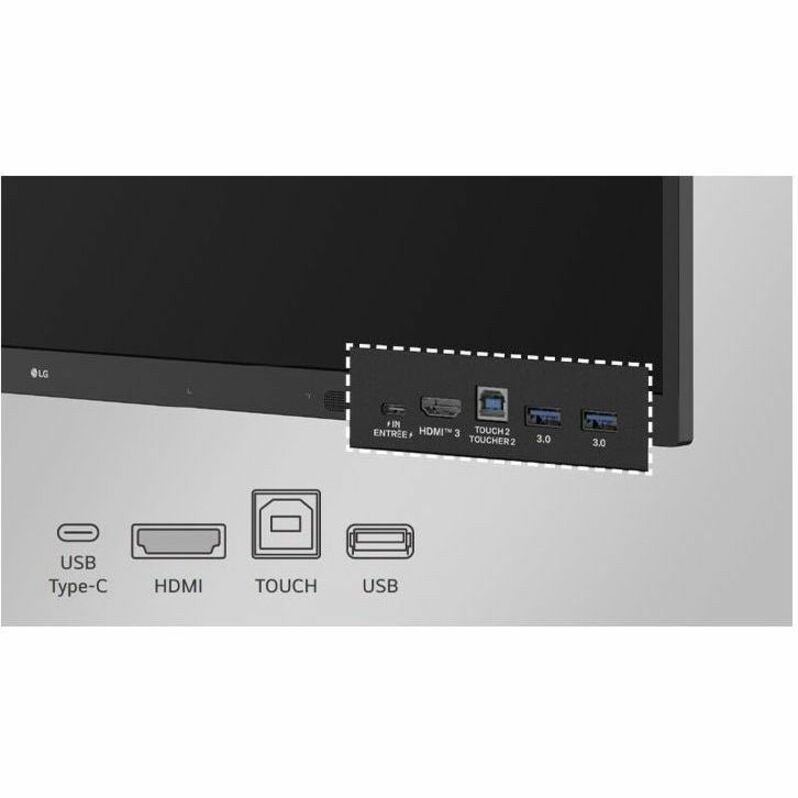

Front Connectivity Design
LG CreateBoard is designed with front display ports, making it easy for users to connect or disconnect cables.
* Some ports including the power connector, are located on the side and back of the unit.

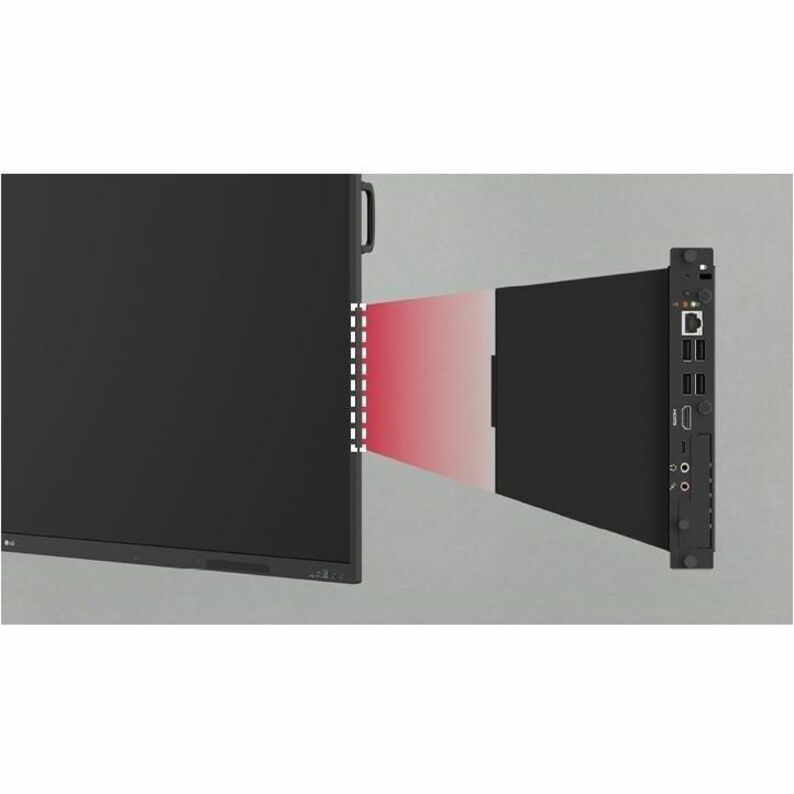

Built-In OPS Slot
The built-in OPS slot supports pluggable devices that allow a range of collaboration tools.

Features Highlights:

• Anti-reflective
• Smart Energy Saving
• Brightness Sensor
• Shatter Proof
• Power Indicator
• Wake on LAN (WOL)
• OPS Type Compatible
• Handle

General Specifications:

• Display Screen Technology: Vertical Alignment (VA)
• Backlight Technology: Direct LED
• Screen Mode: UHD
• Screen Resolution: 3840 x 2160
• Aspect Ratio: 16:9
• Response Time: 6.50 ms
• Color Depth: 10-bit
• Contrast Ratio: 5,000:1
• Display Orientation: Landscape
• Brightness: 350 Nit
• Horizontal Viewing Angle: 178°
• Vertical Viewing Angle: 178°
• Glass Thickness: 0.13"
• Standard Refresh Rate: 60 Hz
• Panel Life: 50,000 Hours
• Operation Hours: 16 Hours/7 Days
• Color Gamut: 72% NTSC

Audio:

• Speakers: Yes
• Number of Speakers: 2
• RMS Output Power: 16 W

Interface/Ports:

• HDMI: Yes (x 2)
• Total Number of USB Ports: 4
• Number of USB 3.0 Ports: 4
• Number of USB Type-C (Power Delivery) Ports: 1
• Number of Network (RJ-45) Ports: 1
• Audio Line In: Yes
• Serial: Yes

Supported Operating Systems:

• Windows 11
• Windows 10
• Windows 8
• Windows 7
• ChromeOS
• Linux
• Mac OS X

Built-In Operating System:

• LG CreateBoard Share

Physical Specifications:

65"

• Bezel Color: Black
• VESA Mount Standard: 600 x 400
• Bezel Width (Bottom): 1.77"
• Bezel Width (Left): 0.65"
• Bezel Width (Right): 0.65"
• Bezel Width (Top): 0.65"
• Height: 35.4"
• Width: 58.7"
• Depth: 3.9"
• Weight (Approximate): 70.76 lb

75"

• Bezel Color: Black
• VESA Mount Standard: 600 x 400
• Bezel Width (Bottom): 1.77"
• Bezel Width (Left): 0.65"
• Bezel Width (Right): 0.65"
• Bezel Width (Top): 0.65"
• Height: 40.2"
• Width: 67.4"
• Depth: 3.9"
• Weight (Approximate): 94.35 lb

86"

• Bezel Color: Black
• VESA Mount Standard: 600 x 400
• Bezel Width (Bottom): 1.77"
• Bezel Width (Left): 0.65"
• Bezel Width (Right): 0.65"
• Bezel Width (Top): 0.65"
• Height: 45.7"
• Width: 77.0"
• Depth: 3.9"
• Weight (Approximate): 112.43 lb
